Hardware

There are many other models - I was on a 5213223671-16, software version 02.2.000.

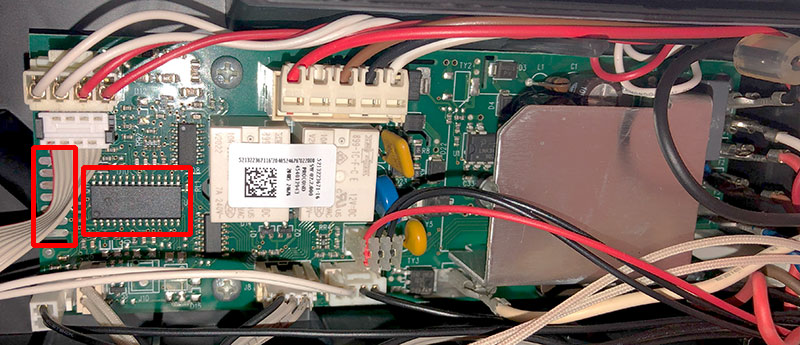

MCU

Microchip PIC18LF2525 - https://www.microchip.com/en-us/product/PIC18F2525

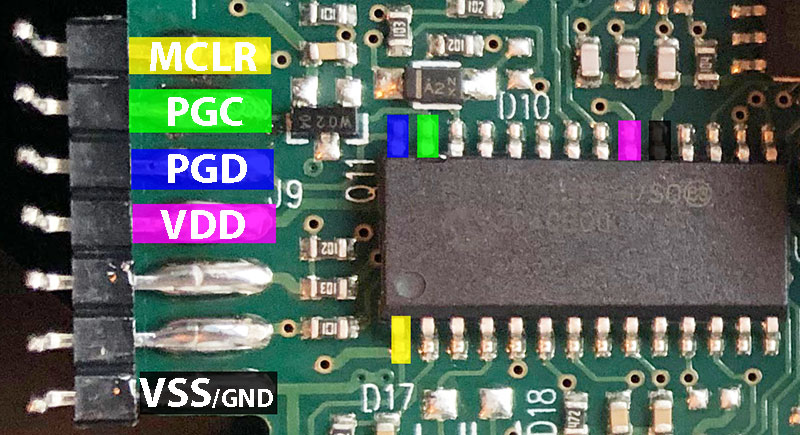

PIN Function
1 MCLR/VPP
19 VSS (Ground)
20 VDD
27 PGC (ICSPCLK)
28 PGD (ICSPDAT)

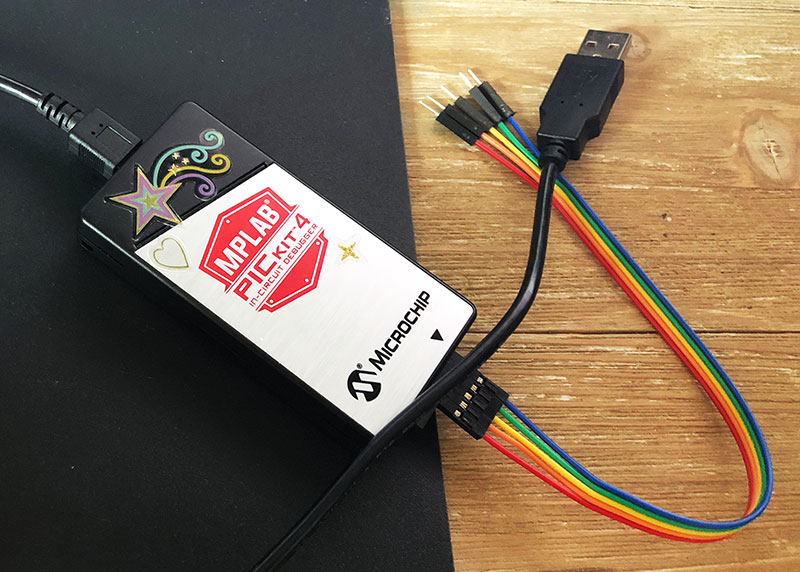

PICkit 4

Microchip PICkit 4 (or +) - https://www.microchip.com/en-us/development-tool/pg164140

PIN Function
1 NMCLR
2 VDD
3 Ground
4 PGD
5 PGC

Firmware

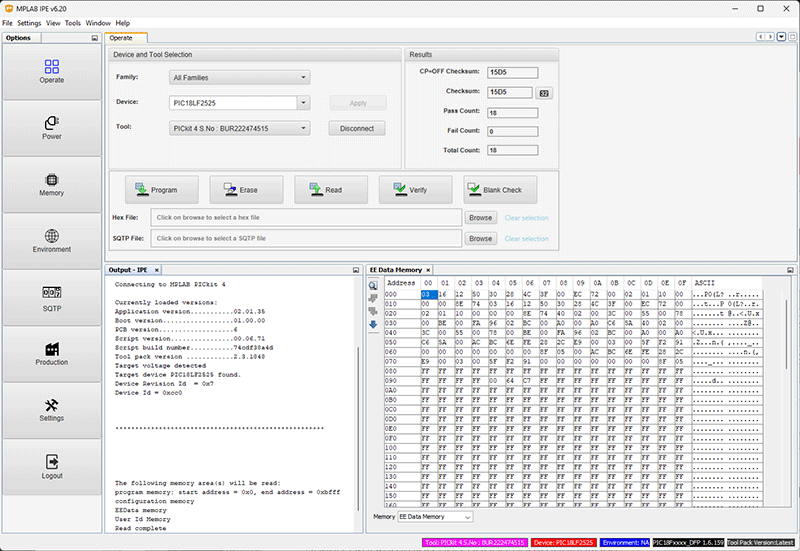

Dump

MPAB IPE - https://www.microchip.com/en-us/tools-resources/production/mplab-integrated-programming-environment _included in MPLAB X IDE - https://www.microchip.com/en-us/tools-resources/develop/mplab-x-ide _

If not already in Advanced Mode, Settings / Advanced Mode (default password is microchip)

[!warning] Do NOT power circuit from programmer: Power / Power target circuit from PICkit 4: unchecked Machine is already powered from general power supply

[!tip] To export in Intel .hex format : Production / Allow Export Hex, then File / Export Hex

Reverse

Data & CRC-16

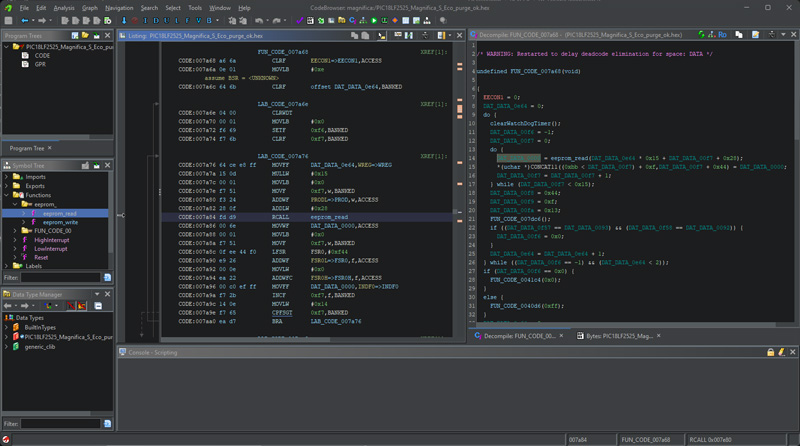

Reversing PIC is hard to me, but:

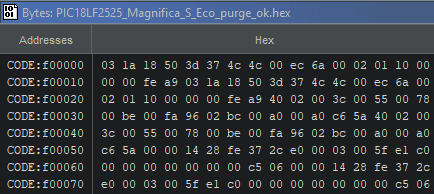

  • State is stored in EEPROM @ address 0xf00000 ;
    • Using void eeprom_write(uchar address,uchar value) & uchar eeprom_read(uchar address)
  • When all is ok, there is 3 information blocks - each repeated 2 times (data are variable according to your coffee machine usage & settings)
    1. 03 1a 18 50 3d 37 4c 4c 00 ec 6a 00 02 01 10 00 00 00 [fe a9]
    2. 40 02 00 3c 00 55 00 78 00 be 00 fa 96 02 bc 00 a0 00 a0 [c6 5a]
    3. 00 00 14 28 fe 37 2c e0 00 03 00 5f e1 c0 00 00 00 00 00 00 00 [c5 06]
  • Last two bytes (inside []) are part of a checksum on previous bytes
    • It seems to be a CRC-16, poly 0x8005, initial value 0x3fc (algorithm validated against other models)
    • Python snippet, with sample data:
# CRC-16, Poly 0x8005, Init: 0x3fc
def crc16_delonghi(data: bytes):
    crc = 0x03fc
    for o in data:
        crc ^= o << 8
        for i in range(8):
            if (crc & 0x8000) > 0:
                crc = (crc << 1) ^ 0x8005
            else:
                crc <<= 1
    return crc & 0xffff

def pretty_crc16_delonghi(string):
    input = bytes.fromhex(string)
    output = crc16_delonghi(input)
    print('CRC: {} for {}'.format(hex(output), string))


if __name__ == '__main__':
    '''
    03 1a 18 50 3d 37 4c 4c 00 ec 6a 00 02 01 10 00 00 00 [fe a9]
    40 02 00 3c 00 55 00 78 00 be 00 fa 96 02 bc 00 a0 00 a0 [c6 5a]
    00 00 14 28 fe 37 2c e0 00 03 00 5f e1 c0 00 00 00 00 00 00 00 [c5 06]
    '''
    pretty_crc16_delonghi('03 1a 18 50 3d 37 4c 4c 00 ec 6a 00 02 01 10 00 00 00')
    pretty_crc16_delonghi('40 02 00 3c 00 55 00 78 00 be 00 fa 96 02 bc 00 a0 00 a0')
    pretty_crc16_delonghi('00 00 14 28 fe 37 2c e0 00 03 00 5f e1 c0 00 00 00 00 00 00 00')
  • Results:
CRC: 0xfea9 for 03 1a 18 50 3d 37 4c 4c 00 ec 6a 00 02 01 10 00 00 00
CRC: 0xc65a for 40 02 00 3c 00 55 00 78 00 be 00 fa 96 02 bc 00 a0 00 a0
CRC: 0xc506 for 00 00 14 28 fe 37 2c e0 00 03 00 5f e1 c0 00 00 00 00 00 00 00

Data (work in progress)

[!information] work in progress

Sticker

ECAM22.110.B / 04928 / S11
5213223671-16
521322367116'2048524676'022000

Data interpretation

00 15 1B 50 33 3E 3F 4C 00 EC 65 00 02 02 10 000000 [4017]
4002003C0055007800BE00FA9602BC00A000A0 [C65A]
196C 0C 41 FE3E 2E2A 0003 00625585 00000000000000 [CE4C]

    2E2A = 11818 Coffees
    0003 =     3 Descalings
00625585 = 6444421, * 0,0005 = 3222 liters of waters (n * 0.5 dcl, or / 2000)
